The short answer
Yes, if you want a cleaner shower screen - that benefit is certain, and Normcore also claims more even water distribution. But a puck screen cannot fix clumps inside the coffee bed, so buy a WDT tool first if your shots channel, and choose a thin screen if your basket has little headspace.
What a puck screen does
- Keeps the shower screen cleaner. The screen takes the contact with the coffee, so much less of it ends up on the machine.
- May spread water more evenly. Normcore says its screens improve water distribution and reduce channeling.
- Takes up headspace. A 1.7 mm disc sits in the basket, so the dose may need to come down.
Scroll the table sideways to see every column.
Quick picks
The answer first. Tap any row to jump to the full reasoning for that pick.
1. Top pick for 58 mm
Normcore Puck Screen 58.5 mm
Entry tier · A 1.7 mm stainless mesh disc that sits on top of the puck in a 58 mm basket.
1.7 mm of 316 stainless mesh - the standard screen for 58 mm baskets.
Normcore's 58.5 mm puck screen fits standard 58 mm baskets. It is 316 stainless steel, 1.7 mm thick, with a 150-micron mesh; a titanium PVD version uses a 100-micron mesh.
It sits on top of the tamped coffee, between the puck and the machine's shower screen.
The benefit nobody disputes is cleanliness: the screen takes the direct contact with the coffee, so far less of it ends up stuck to the shower screen. Normcore also says it improves water distribution and reduces channeling.
At 1.7 mm it takes headspace in the basket, so you may need to reduce your dose slightly to keep the screen clear of the shower screen.
Specification
- Diameter
- 58.5 mm, for standard 58 mm baskets
- Thickness
- 1.7 mm
- Mesh
- 150 microns (silver); 100 microns on the titanium PVD version
- Material
- 316 stainless steel
What it does well
- Keeps the shower screen noticeably cleaner, which is the one benefit nobody disputes
- Normcore says it improves water distribution and reduces channeling
- 316 stainless is made for daily contact with hot water and coffee
Where it gives ground
- 1.7 mm of screen takes headspace in the basket, so the dose may need to come down
- One more part to rinse after every shot
- It does nothing about clumps inside the bed - that is a WDT tool's job
Skip it if
Skip it if your basket is already full to the top at your usual dose. A thin screen from the kit below leaves more room.
2. Top pick for Breville

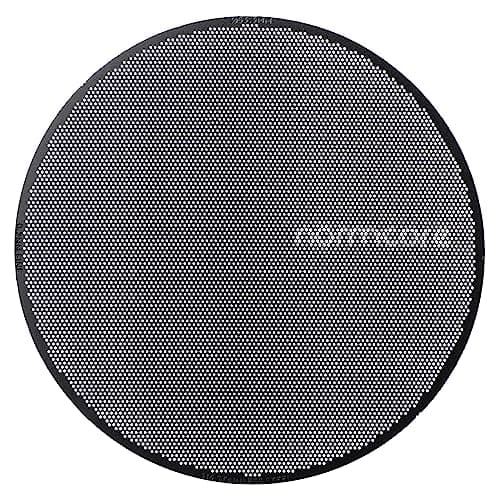

Normcore Puck Screen 53.3 mm
Entry tier · The same 1.7 mm stainless screen in the 53.3 mm size for Breville's 54 mm baskets.
The same screen in the 53.3 mm size for Breville's 54 mm baskets.
Breville's 54 mm baskets are tapered, so screens and tampers for them are sized at 53.3 mm. This is the same 316 stainless, 1.7 mm screen in that size, with a 150- or 100-micron mesh.
The cleanliness benefit is the same: less coffee on the shower screen, and less scrubbing between cleans.
Headspace is the thing to watch. If the puck starts touching the shower screen with the puck screen in place, reduce the dose.
It pairs naturally with a 53.3 mm tamper - see the Bambino kit.
Specification
- Diameter
- 53.3 mm, for Breville 54 mm baskets
- Thickness
- 1.7 mm
- Mesh
- 150 microns, or 100 microns
- Material
- 316 stainless steel
What it does well
- Sized for Breville's tapered 54 mm baskets, not a nominal 54 mm
- Keeps the shower screen cleaner between cleans
- Same 316 stainless build as the 58.5 mm version
Where it gives ground
- Takes headspace in an already shallow basket
- Adds a rinse to every shot
- Will not fix clumping or an uneven tamp
Skip it if
Skip it for a 58 mm machine - it will not fit. Buy the 58.5 mm version instead.
3. Best for tight baskets

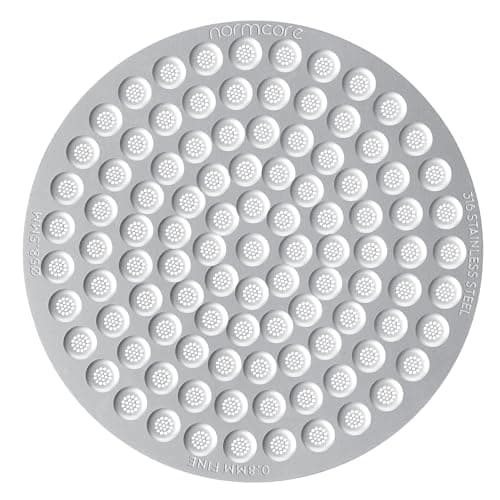

Normcore 58.5 mm Magnetic Puck Screen Kit
Entry tier · Two thin 58.5 mm screens - 0.2 mm and 0.8 mm - with a magnetic pin and a stand.
Two thin screens - 0.2 mm and 0.8 mm - that take far less headspace.
This kit includes two 58.5 mm screens, one 0.2 mm ultra-thin and one 0.8 mm standard, in 304 stainless steel, with a magnetic pin and a stand.
Thin screens solve the main complaint about puck screens: headspace. A 0.2 mm screen barely changes how full the basket is.
The magnetic pin lifts a hot screen out of the basket without burned fingers, and the stand keeps it off the counter.
Very thin screens are easier to bend than a thick disc, so they want a little more care.
Specification
- Diameter
- 58.5 mm
- Screens
- 0.2 mm ultra-thin and 0.8 mm standard
- Handling
- Magnetic pin and stand included
- Material
- 304 stainless steel
What it does well
- Thin screens take far less headspace than a 1.7 mm disc
- Two thicknesses let you find what suits your basket and dose
- The magnetic pin lifts a hot screen out without fingers
Where it gives ground
- Very thin screens are easier to bend than a thick disc
- 58.5 mm only - not for Breville's 54 mm baskets
- Same limit as any puck screen: no effect on clumps below the surface
Skip it if
Skip it for a Breville 54 mm basket. It is 58.5 mm only.
4. Buy this first
Normcore WDT Tool V4
Entry tier · A retractable needle tool for breaking up clumps in the basket before tamping.
A WDT tool fixes the clumps that cause most channeling; a puck screen does not.
This is here because puck screens are often bought to fix channeling, and channeling usually starts somewhere a puck screen cannot reach.
Clumps inside the ground coffee leave dense and loose regions in the bed, and water routes through the loose ones. A puck screen sits on top of the bed; it does nothing about what is inside it.
A WDT tool does. The Normcore V4 has nine needles with 0.3 mm and 0.4 mm sets included, in 304 stainless with an anodized handle, in 54 mm and 58 mm sizes.
If your shots channel and you own neither, buy the WDT tool first. Add a puck screen afterwards for a cleaner shower screen.
Specification
- Needles
- 9 needles; 0.3 mm and 0.4 mm sets included
- Material
- 304 stainless needles, anodized aluminum handle
- Mechanism
- Twist to extend or retract
- Sizes
- 54 mm and 58 mm
What it does well
- The cheapest meaningful improvement to an espresso shot, by some distance
- Retracting needles means it lives in a drawer without bending
- Two needle gauges cover fine and coarser grinds
Where it gives ground
- Adds a step to every single shot
- Needles will eventually bend whatever you do
- Does nothing at all for filter coffee
Skip it if
If you can buy only one, skip the puck screen, not this - see WDT tools.
The headspace catch
Espresso needs a little space between the top of the puck and the shower screen. A puck screen uses some of that space, and if the puck and screen press against the shower screen, the shot suffers.
If you add a thick screen, check the gap and reduce your dose if needed, or choose a thinner screen. That is the whole reason the 0.2 mm and 0.8 mm options exist.
